Compatible cameras |
ARRI ALEXA LF/65/SXT, AMIRA |
Compatible batteries |
14.4V standard V-mount battery(SXT, AMIRA) |
PB-H290S 14.4V/28.8V Bi-voltage battery(LF, 65, SXT, AMIRA) |
|
DC output |
D-tap x2 (Constant 16V/4A under high voltage) |
2-pin LEMO x1 (Constant 16V, Max 6A under high voltage) | |
USB 5V/2A x1 |
|
Dimensions |
142×82×17mm |
Net weight |
350g |
Aluminum CNC unibody housing

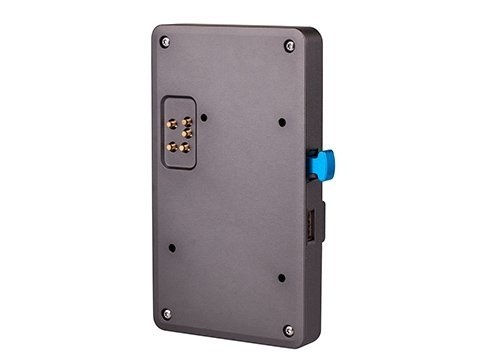

The V-mount plate KA-A20S is designed for ARRI ALEXA LF, ALEXA 65, ALEXA SXT and AMIRA, with Aluminum CNC unibody housing, perfectly match with ALEXA cameras, robust and reliable.
Match with PB-H290S to output 22-33.6V
SWIT Bi-voltage battery PB-H290S can recognize the KA-A20S plate and auto switch on 22-33.6V, to power Alexa LF/65/SXT/AMIRA.
Use other batteries, the KA-A20S plate will not change voltage, and directly power the camera.
Battery Contact Pins:
Unique lantern type pins, wider contact surface, support Max 16A current without overheating; Camera Contact Pins:
Copper rod direct conducting (instead of spring conducting), and the strong spring makes fully contact with camera pins, ensure 10A reliable current and prevent overheat.
