SWIT PB-R160S 160Wh Heavy Duty Digitální baterie
- 25%
Na Dotaz
9 907Kč
8 188Kč
bez DPH
- Před slevou:
- 13 209Kč
- DPH:
- 21 %
- Výrobce:
- SWIT
- Kód výrobku:
- PB-R160S 160Wh
- Katalogové číslo:
- A01-041
- EAN:
- 6948193504872
- Záruka:
- 3 roky
Popis
|
Jmenovité napětí |
14,4 V |
|
Kapacita |
160 Wh / 11,1 Ah |
|
Maximální výstupní výkon |
150 W. |
|
Maximální výstupní proud |

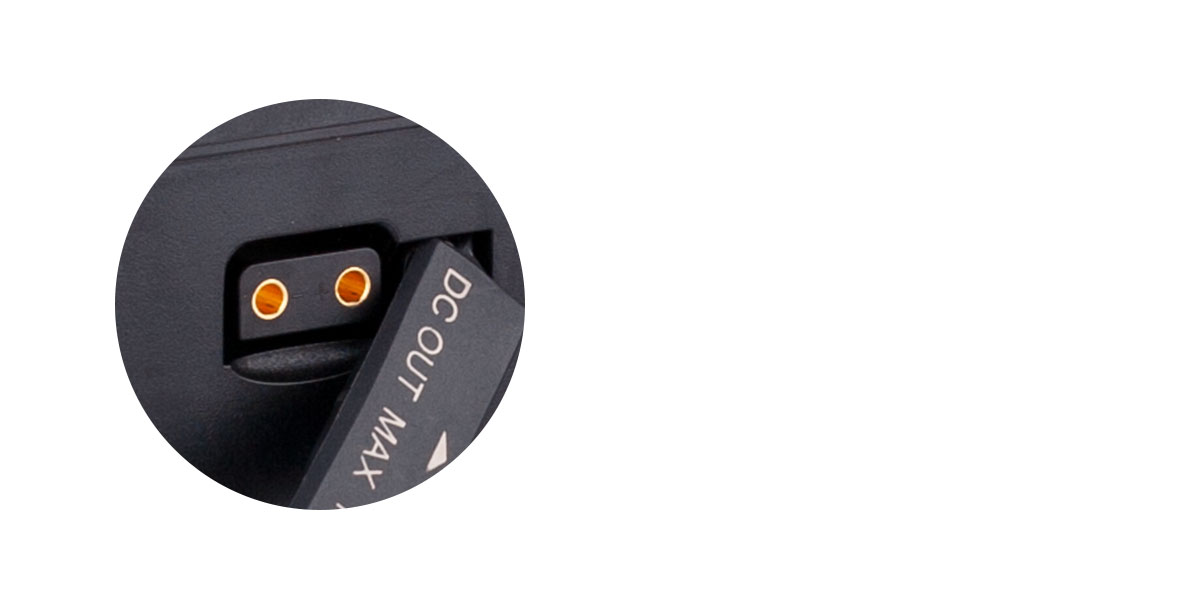

12A (D-odbočka 10A) |
|
Maximální nabíjecí proud |
6A rychlé nabíjení |
|
Typ montáže |
V-mount |
|
Provozní teplota |
0-40 ° C |
|
Čistá hmotnost |
Přibližně 1,08 kg |
|
Rozměry |
162×101×53mm |

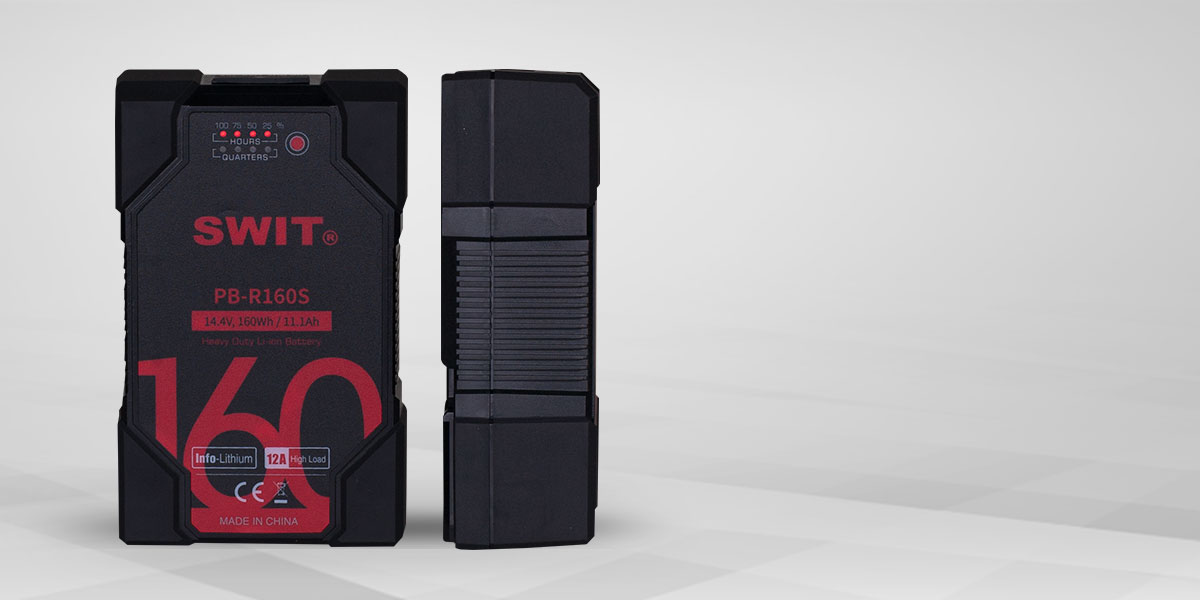

Heavy Duty Battery
V-mount camera battery
PB-R160S is a 160Wh V-mount battery, for Cine and ENG cameras, with latest designed dual housing heavy duty structure, drop-off proof. The battery supports high load, fast charging and digital power info display, which is an ideal power solution for field applications.

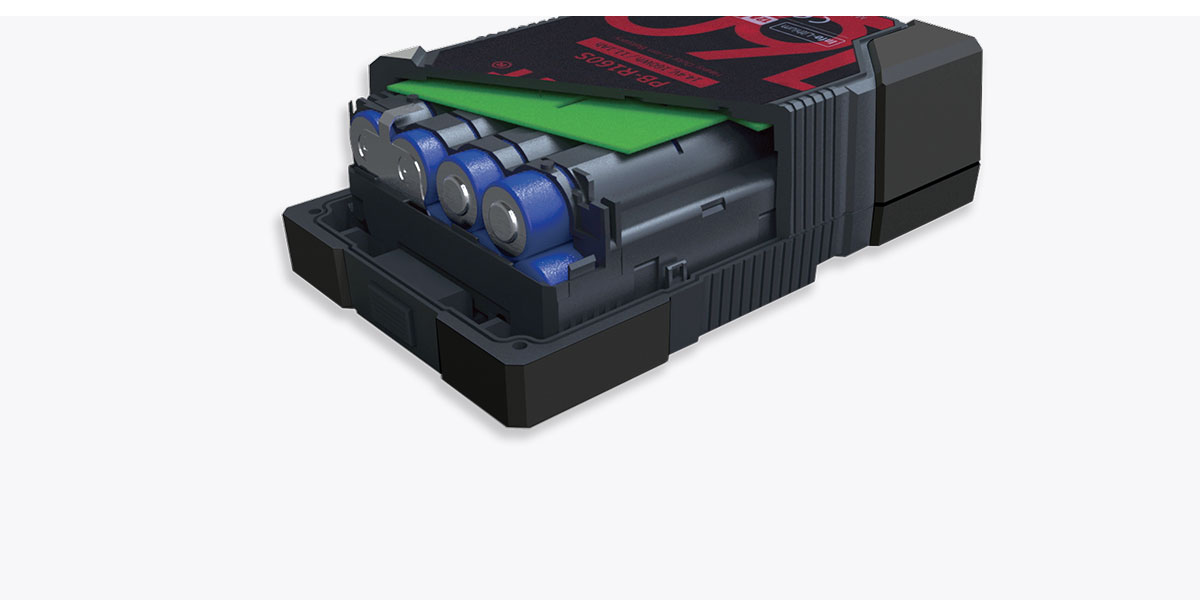

Strong 1.5m Drop-off Proof
Dual housing + Robber cover
PB-R160S has innovative dual housing structure: the inner cell cage and outer anti-shock housing with rubber covers. The new structure makes the battery quite strong, anti-shock. The battery can survive from 1.5 meters any angles drop-off.
160Wh / 11.1Ah Capacity
The largest capacity for airplane boarding
Consists of 18pcs high class 18650 battery cells, and reaches 160Wh / 11.1Ah high capacity, which is the largest capacity to board to airplane.
Can run approx 6 hours for normal ENG cameras, and approx 2 hours for ARRI ALEXA.

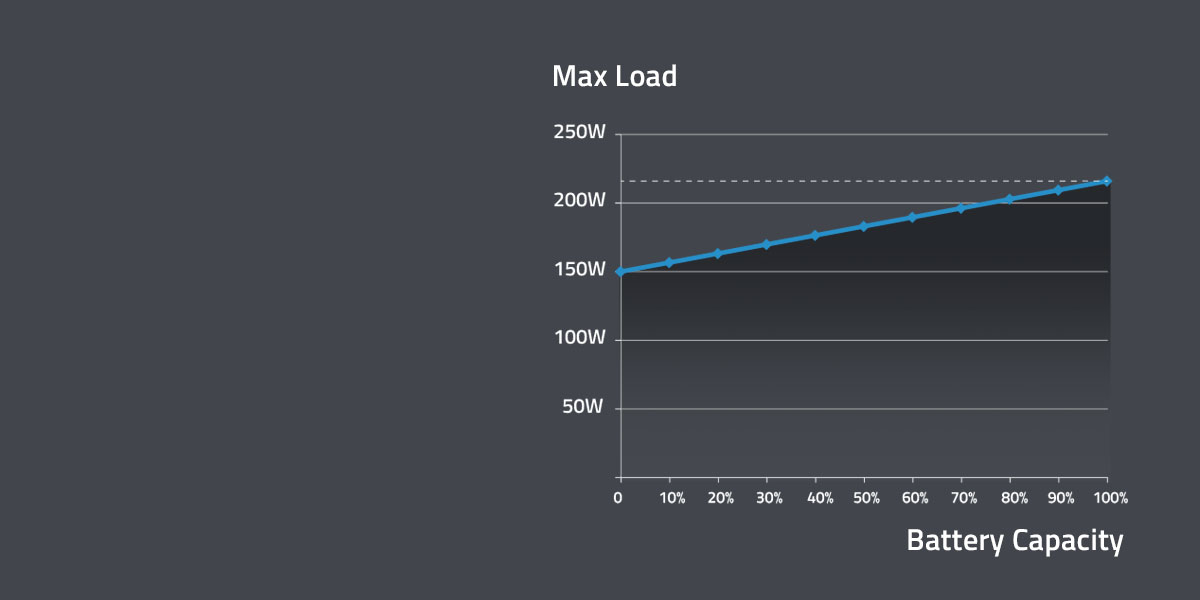

High Load for Cine Cameras
At least 150W / 12A load
PB-R160S provides at least 150W/12A high load even at 1% capacity, to drive high power Cine cameras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output. Over current protection: 14A

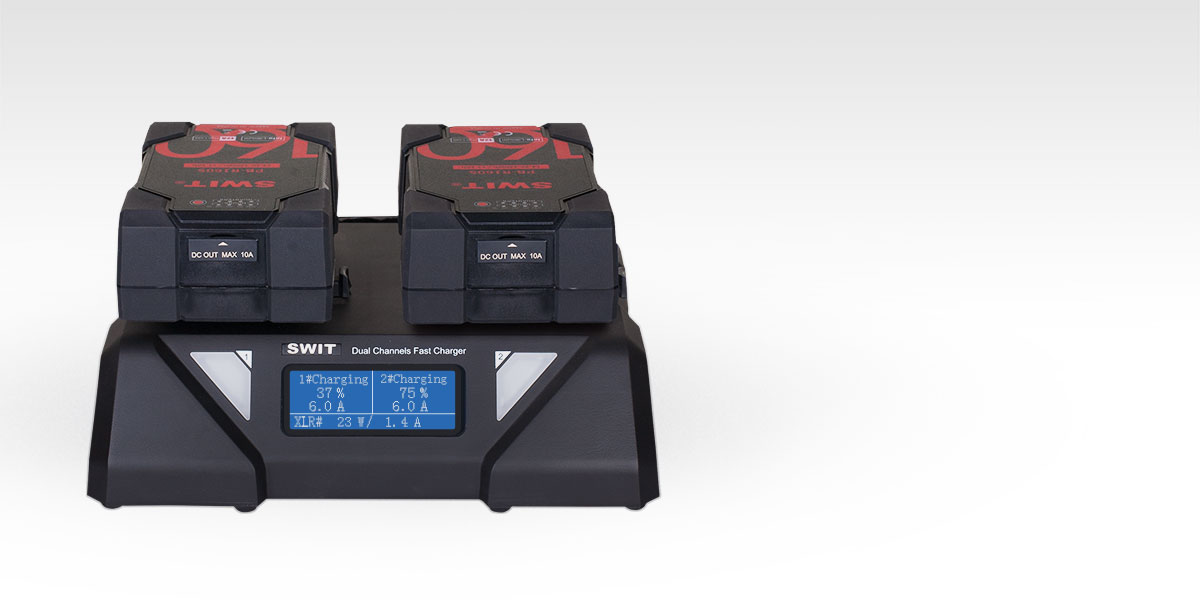

6A Fast Charging
Using SWIT S-3812S fast charger
PB-R160S supports 6A fast charging by SWIT S-3812S fast charger, to save more than 50% charging time. The 160Wh PB-R160S battery can be charged from 0 to 80% after 1.5 hours, and fully charged within 2.5 hours.

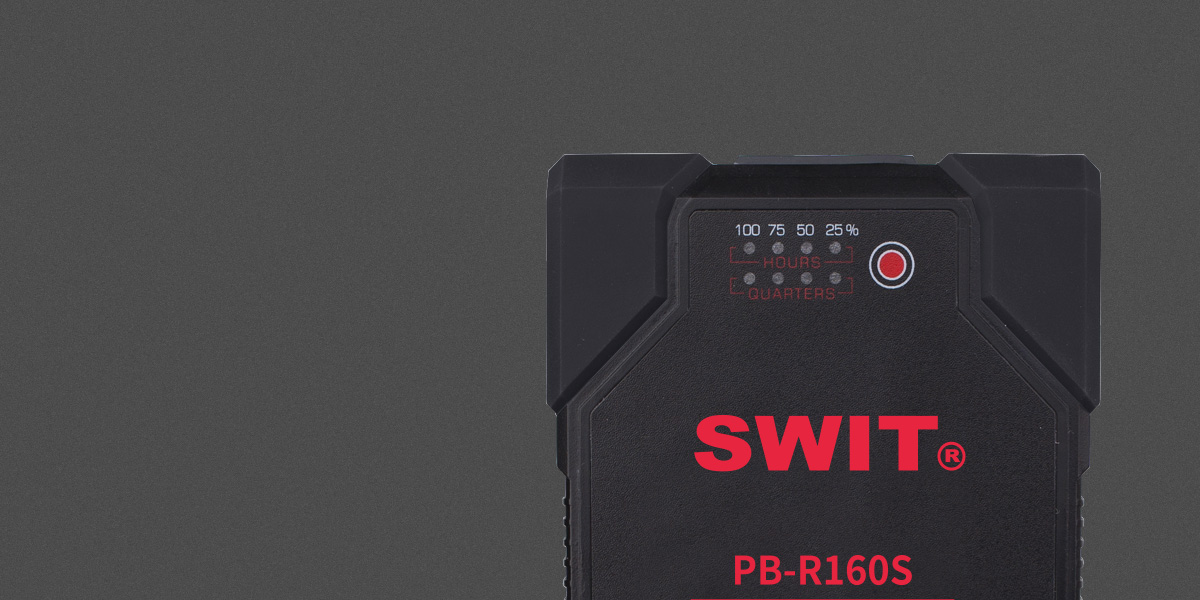

Digital Power Info
8-LED + SONY&RED viewfinder info
PB-R160S has the innovative 8-LED power indicators. When free or charging, the LEDs will indicate current capacity percentage, and when battery is discharging, the LEDs will display the remaining running time at the current discharging power, accurate to 15 minutes. Meanwhile, the battery pack adopts intelligent SMBUS that compatible with both SONY and RED camera info system, and can display remaining minutes on camera viewfinder.
