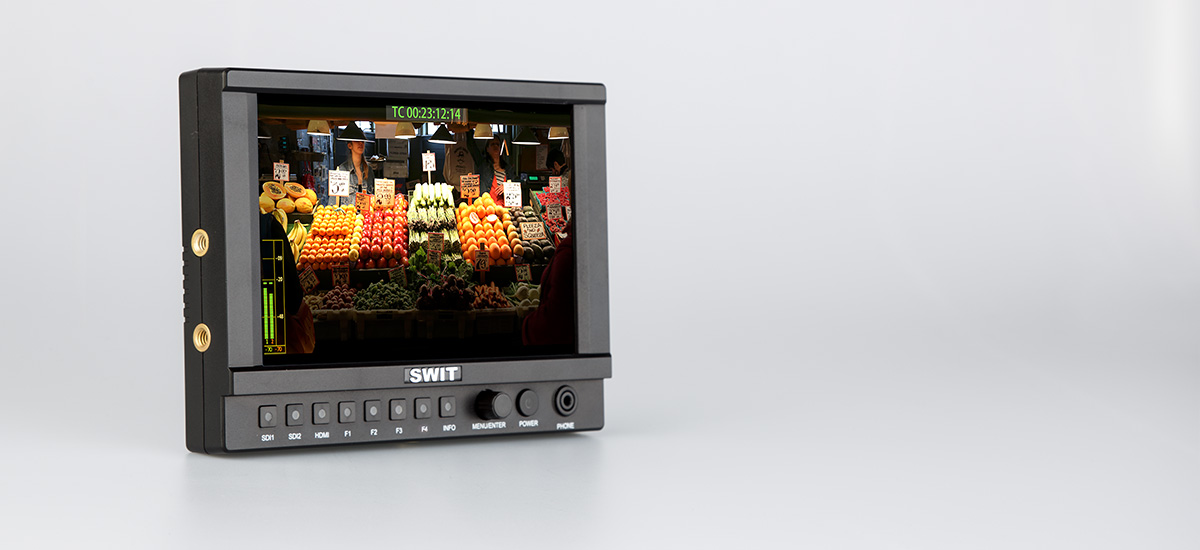

7-inch Full HD LCD IPS panel with LED backlight The S-1073H adopts a 7-inch IPS (In-Plane Switching) LCD panel, Full HD 1920x1200 resolution,1000:1 contrast. Input/Output Interfaces 3G-SDI、4K-HDMI S-1073H monitor… Více informací
IPS panel with LED backlight
The S-1073H adopts a 7-inch IPS (In-Plane Switching) LCD panel, Full HD 1920x1200 resolution,1000:1 contrast.

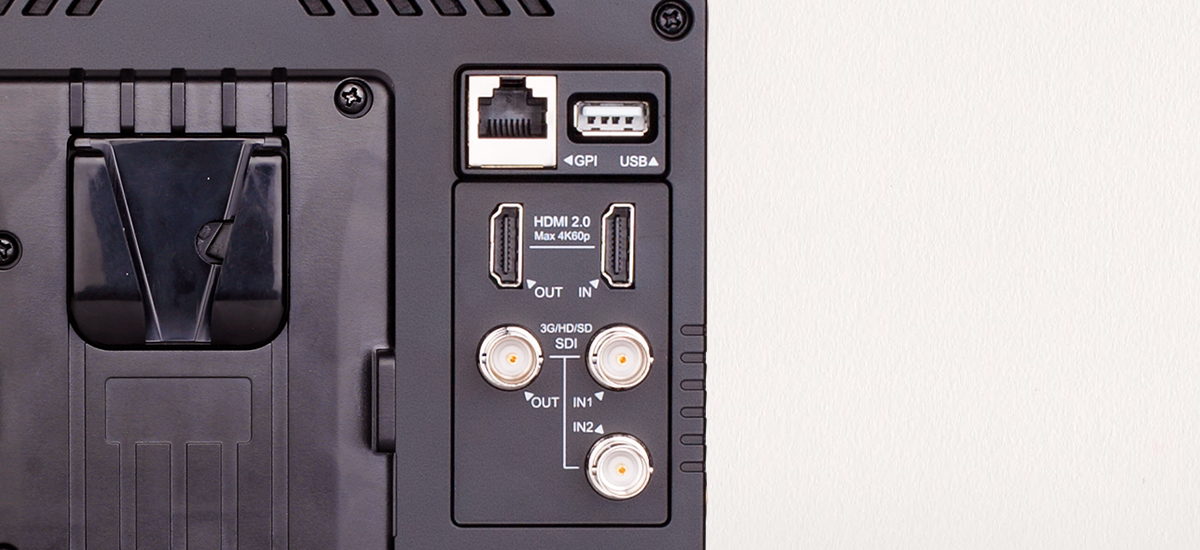

S-1073H monitor supports:
2K/3G/HD/SD-SDI input × 2
2K/3G/HD/SD-SDI loop output × 1 (loop SDI IN1 only)
HDMI 2.0 (4K60p) input × 1
HDMI 2.0 (4K60p) loop output × 1
3.5mm SDI/HDMI embedded audio output
User LUT cube import
S-1073H monitor has built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2， S-log3, V-log, J-log1, RedLogFilm. You can also import own 3DLUTs to monitor by USB stick, support 17x17x17 3DLUT cube files.
Up to 16-ch meters with alert and select output
S-1073H supports SDI-16ch and HDMI-2ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.

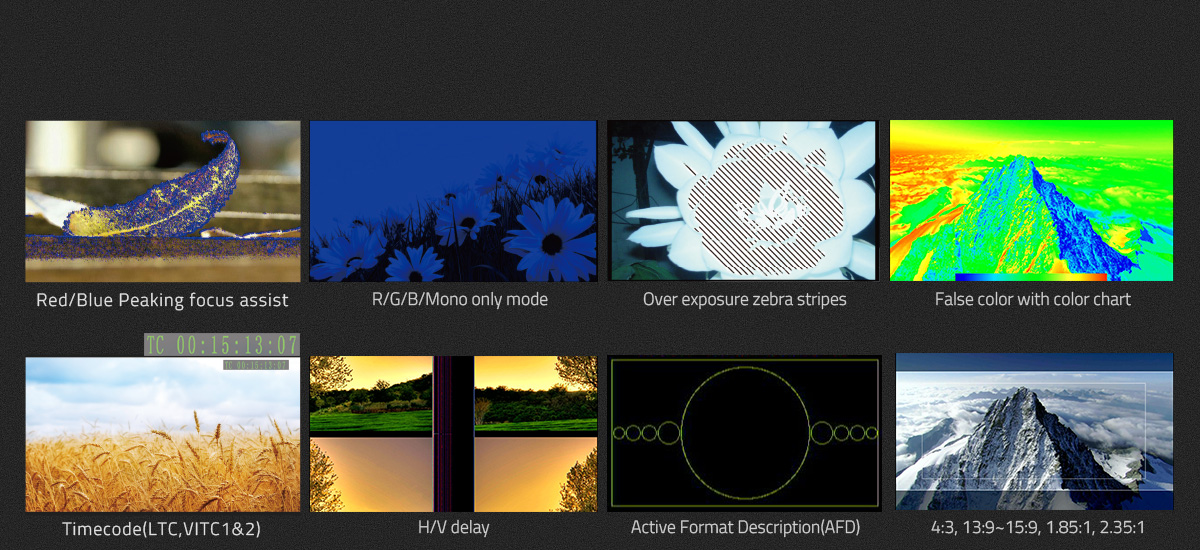

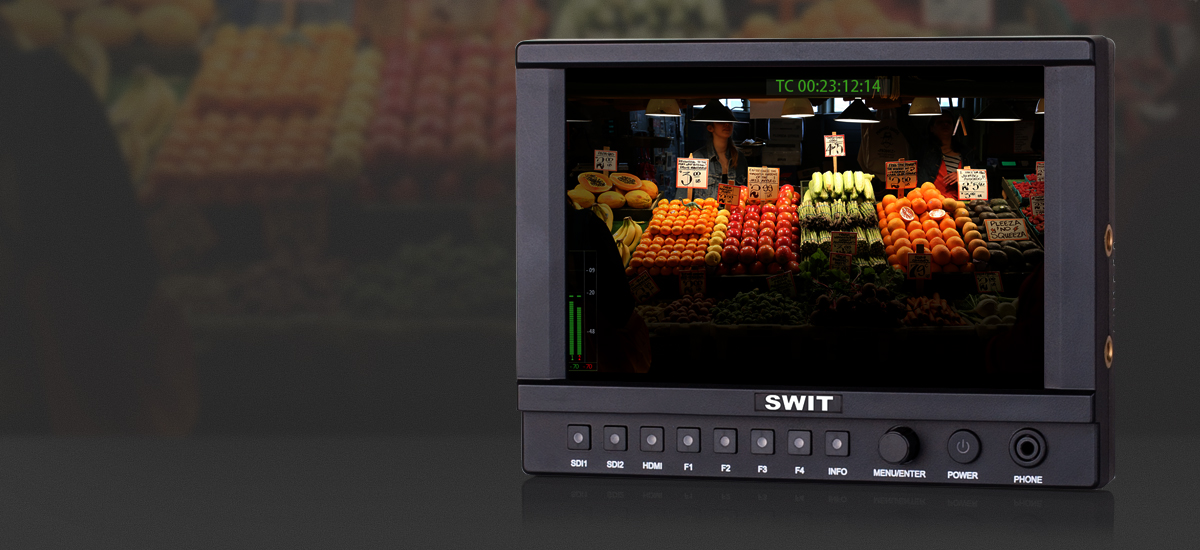

Timecode, H/V delay, AFD, Scale Markers

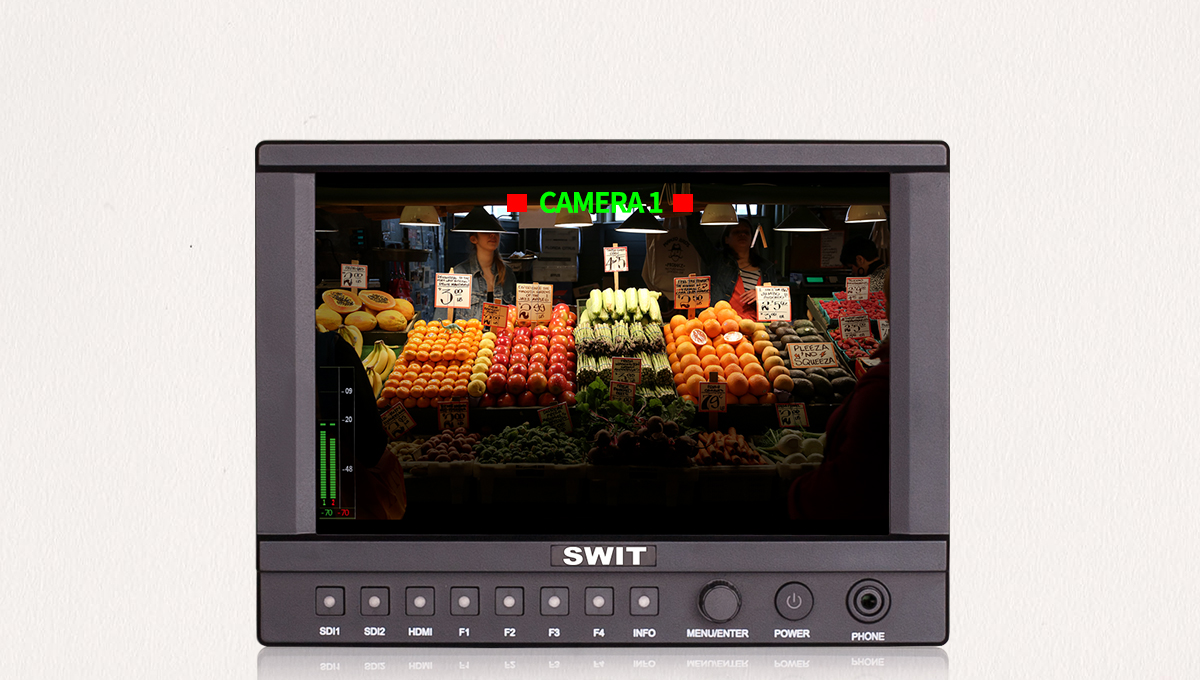

S-1073H supports on-screen TALLY display, and the TALLY control signal inputs via GPI(RS485) port on the rear panel of the monitor.
V-mount / Gold mount / DV mount
S-1073H supports DC 6.5-17V input via a 5.5mm lockable DC socket, and can install SWIT S-7006 series V-mount / Gold mount / DV battery plates to power.
The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into S-1073H monitor to upgrade, without PC connection.
|Manual CM-S73H||787.73 kB||Stáhnout soubor|
